OPCS Kuper/Centent Wiring

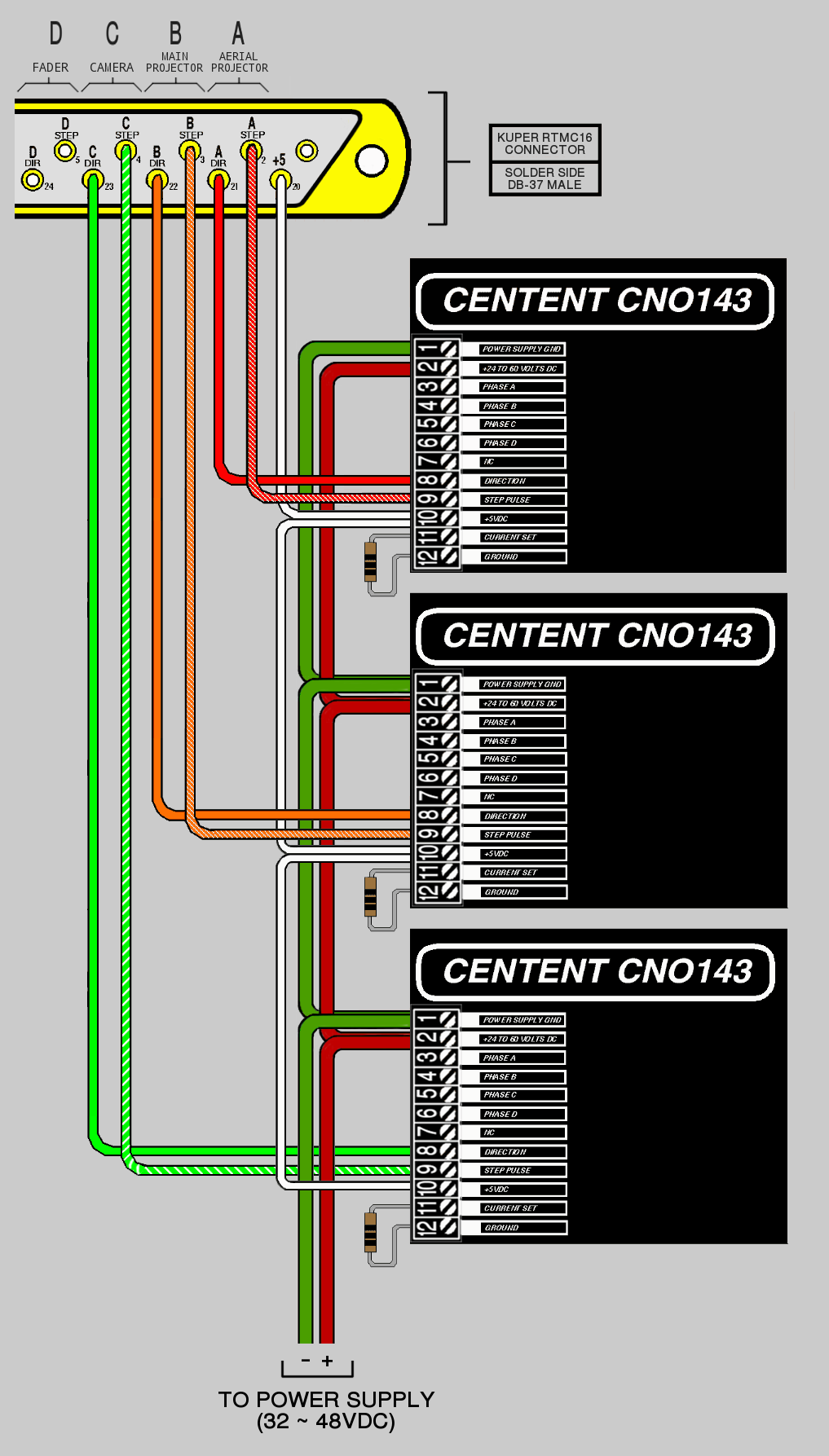

This shows the fanout wiring of a male Kuper RTMC16 DB37 connector to three Centent CNO143 drives. Motor power supply and motor wiring not shown.

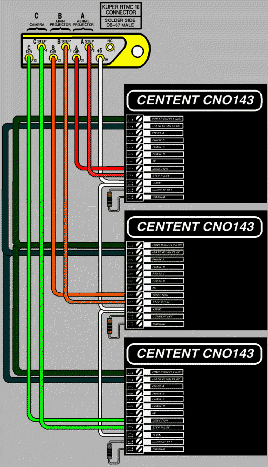

Click on the image to see a full screen version, which is about 200k. (This may take a while over slow network links.)
