Submit-Maya-Tile Script

Sometimes a single frame takes so long to render, it's difficult to get decent feedback when tweaking the lights or objects in a scene. In such a case, it's desirable to have multiple machines render different parts of the frame as 'tiles' that can quickly get comped together.

'submit-maya-tile' submits a single maya frame to multiple machines by splitting the image up into 'tiles' and rendering them separately, and then using ImageMagick's 'montage' command to composite the tiles together into a single image. It does this by submitting a multiple frame Rush job, such that each 'rush frame' works on a different tile of the image, and the last frame comps all the tiles together into a single image.

Dependencies

This script assumes your scene file has the Render Globals set to use the "name.#.ext" filename format, and that the freeware ImageMagick 'montage' tool is available to do the compositing. (See their webpage for download info. Redhat Linux comes with all ImageMagick tools on the install CDs)

Example Use

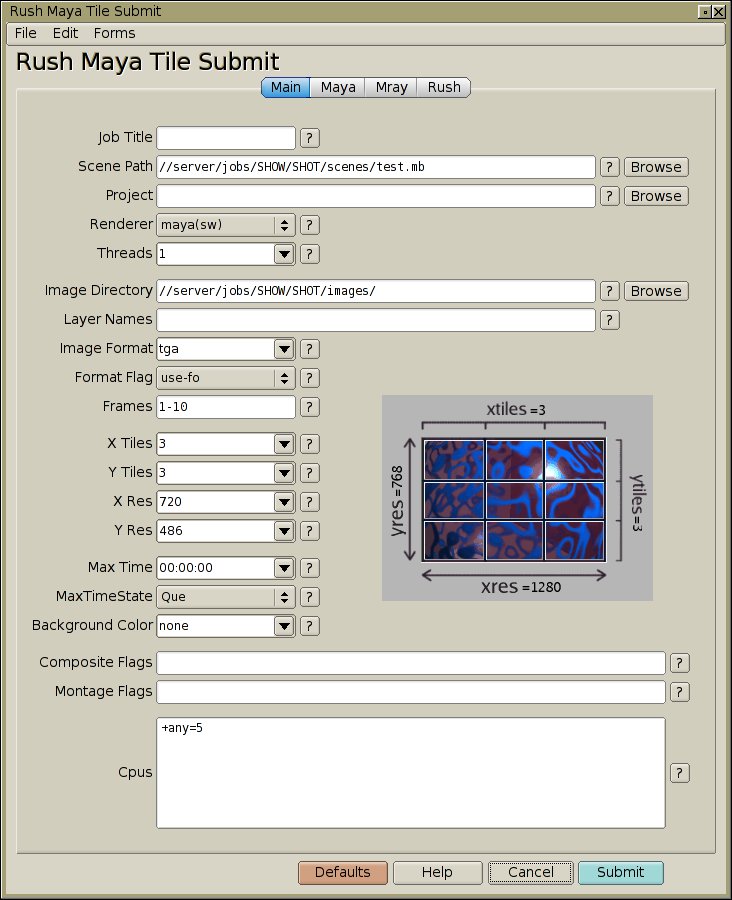

After filling out the submit form, and submitting the job, you should end up with a multiple frame Rush job, where each frame in the job represents a different tile in the image. How many tiles you break the image into depends on what you specify for the Xtiles: and YTiles: prompts.

What follows shows the Rush frames report for a simple 2x2 (4 tile) render, and the resulting image tiles and composite image that results.

Rush Frame List

STAT FRAME TRY HOSTNAME PID JOBID START ELAPSED NOTES Done 0001 1 geneva 1512 ontario.103 07/02,19:27:19 00:00:15 TILE-A Done 0002 1 ontario 1284 ontario.103 07/02,19:27:19 00:00:15 TILE-B Done 0003 1 bubble 16001 ontario.103 07/02,19:27:19 00:00:14 TILE-C Done 0004 1 geneva 1600 ontario.103 07/02,19:27:19 00:00:17 TILE-D Done 0005 1 ontario 1893 ontario.103 07/02,19:27:38 00:00:01 COMP



Four Tiles Rendered on Separate Machines

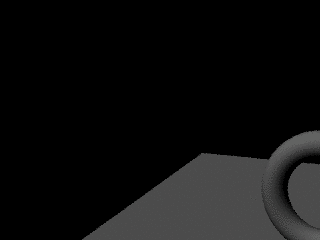

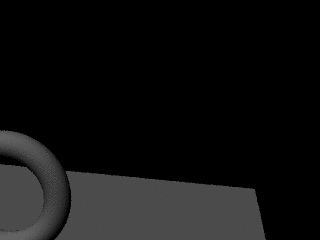

tile-a.0001.sgi (rush frame 0001)	tile-b.0001.sgi (rush frame 0002)

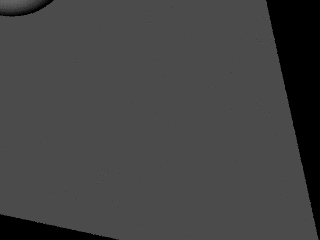

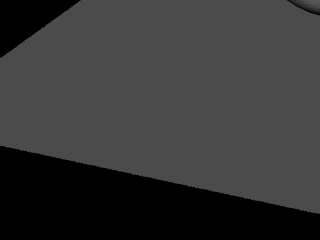

tile-c.0001.sgi (rush frame 0003)	tile-d.0001.sgi (rush frame 0004)



Final Composite Image

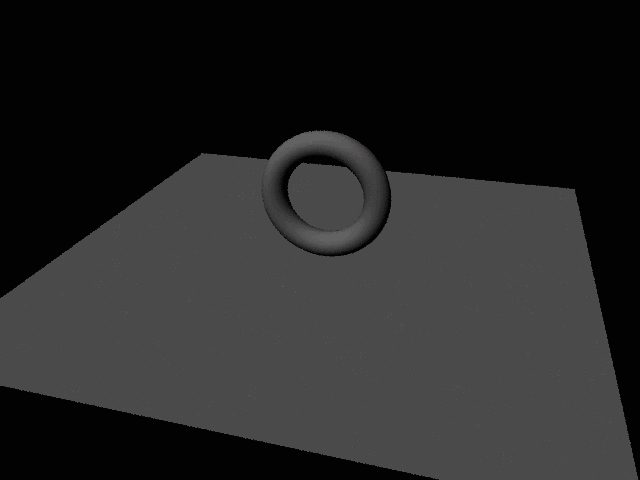

out.0001.sgi (rush frame 0005)

4x4 Tiled Render Example (16 tiles total)

Here's another example, showing what happens when you just change the settings for XTiles:4 and YTiles:4. The result is a 16 tile image in a 4x4 arrangement. Doing this creates a 17 frame Rush job; the first 16 "rush frames" render the 4x4 tiles, and the 17th "rush frame" comps the other 16 into a single image.

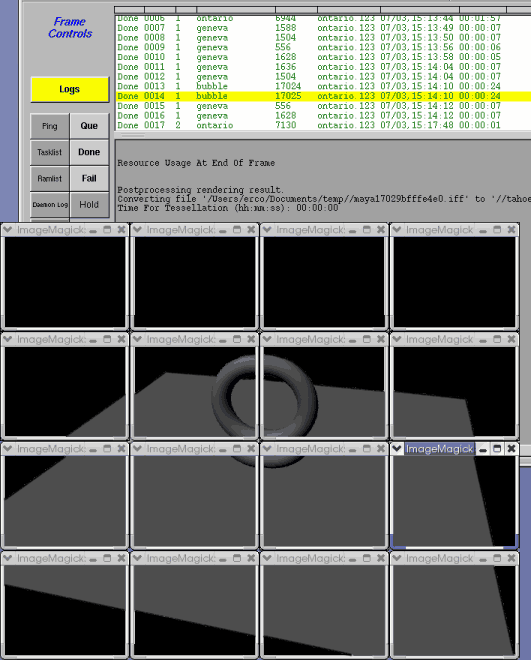

What's shown here is a screen shot showing the user's desktop after middle-clicking on each of the frames in Irush, which brings up the separate tile images in the ImageMagick 'display' program, and the resulting comp.

4x4 Tiles (16 total)



Final Composite Image

out.0001.sgi (rush frame 0005)
